Microgrids Explained: Small Grids That Can Stand on Their Own

A microgrid is a local energy system that can disconnect from the main grid and keep running. Here is how they work and why data centers are paying attention.

Published

on

Wind turbines and solar panels in a rural landscape

Most electricity customers depend entirely on the wider grid. If it goes down, so do they. A microgrid changes that relationship. It is a local energy system with its own generation and controls that can operate connected to the grid or, when needed, separate from it and keep serving its loads.

The defining features

The U.S. Department of Energy describes a microgrid as a group of interconnected loads and distributed energy resources within clearly defined electrical boundaries that acts as a single controllable entity with respect to the grid. Two capabilities are central:

  • It can connect to and draw from or support the main grid during normal conditions.
  • It can disconnect, a step called islanding, and continue to supply power on its own.

A building with a backup generator is not necessarily a microgrid. The distinction is the coordinated control system that manages multiple resources and the transition between grid-connected and island modes.

Advertisement

What goes into a microgrid

Microgrids combine several elements depending on their purpose:

  • Generation such as solar panels, natural gas engines, fuel cells or combined heat and power units.
  • Energy storage, usually batteries.
  • Controllable loads that can be adjusted or shed.
  • A controller that balances supply and demand and manages islanding.
  • Switchgear that separates the microgrid from the utility when needed.

Military bases, hospitals, universities, campuses and industrial sites are common microgrid hosts, because they value reliability and often have the scale to justify the investment.

How a microgrid behaves day to day

When connected to the grid, a microgrid may run its own resources to reduce costs, provide services to the utility, or keep batteries charged. When a disturbance hits, it can island, isolating itself and balancing its own supply and demand. When the grid recovers, it resynchronizes and reconnects.

The hard engineering problem is stability. A small island lacks the inertia and depth of the large grid, so the controller must react quickly to keep frequency and voltage steady as loads and resources change.

Why data centers are interested

Data centers already have backup systems, but they are typically designed only for emergencies. A microgrid approach goes further, potentially using on-site resources routinely and coordinating with the grid. That opens several possibilities:

Advertisement
  • Powering part of a campus on site while waiting for a full grid connection.
  • Reducing grid demand during peaks or emergencies.
  • Integrating cleaner on-site resources with traditional backup.
  • Improving resilience during extended outages.

Trade-offs and limits

Microgrids add cost and complexity. Running generation on site requires fuel, permits, maintenance staff and careful protection design. Utility rules, interconnection requirements and state regulations can limit what microgrids are allowed to do, especially when they cross property lines or sell power.

Still, as the line between energy producer and energy user blurs, microgrids offer a useful model. They show how a large facility can be more than a passive load, becoming an active participant that supports both its own reliability and the wider grid’s.

Watching an Islanding Event Step by Step

The moment a microgrid separates from the main grid is its defining test. A simplified sequence for a campus microgrid might look like this:

  1. Detection. The controller and protective relays sense a problem on the utility side, such as a voltage collapse or loss of supply.
  2. Separation. The point-of-interconnection switch opens, isolating the microgrid from the utility. This protects utility crews and prevents the microgrid from feeding a damaged system.
  3. Stabilization. Batteries respond within moments to hold frequency and voltage steady while generators adjust.
  4. Load management. If on-site resources cannot cover everything, the controller sheds lower-priority loads, keeping critical systems running.
  5. Island operation. The microgrid balances its own supply and demand for as long as needed, managing fuel and battery levels.
  6. Resynchronization. When the utility is restored, the controller matches the microgrid’s voltage, frequency and phase to the grid before reconnecting smoothly.

Some islanding events are unplanned responses to outages. Others are planned, for example ahead of a forecast storm, which gives the system time to prepare.

Questions to Ask Before Planning a Microgrid

Organizations considering a microgrid usually start with a set of practical questions:

  • What must stay on? Identify critical loads and rank the rest by priority.
  • How long must it run alone? A few hours, a few days or longer changes the resource mix dramatically.
  • What resources fit the site? Roof and land space for solar, pipeline access for gas, space for batteries and permitting constraints.
  • What will it do when the grid is normal? Reducing peak demand, providing grid services or simply staying ready all affect the economics.
  • What will the utility allow? Interconnection rules, standby charges and limits on serving other properties vary by state and utility.
  • Who will operate and maintain it? Microgrids need skilled staff or service contracts for their entire life.

The financial case varies widely by site, incentives and utility rates, so any organization should evaluate its own numbers with qualified engineering, legal and financial professionals.

Common Mistakes

Designing for the wrong outage

A system sized for short interruptions may not help in a multi-day event. Clarifying the resilience goal early prevents mismatched designs.

Underestimating protection engineering

Fault currents behave differently in a small island than on the main grid. Protection settings that work when connected may not work when islanded, and both modes must be studied.

Never testing island mode

A microgrid that has never actually islanded is unproven. Periodic planned tests build confidence and expose weaknesses.

Questions Readers Ask

Can a neighborhood have a microgrid? Some community microgrids exist, often serving critical facilities like shelters, fire stations and clinics. Rules about serving multiple customers vary by state.

Is a microgrid always clean energy? No. Many use natural gas or diesel, sometimes combined with solar and batteries. The resource mix depends on goals and site constraints.

What is a nanogrid? The term is sometimes used for an even smaller system, such as a single building with its own solar, storage and controls.

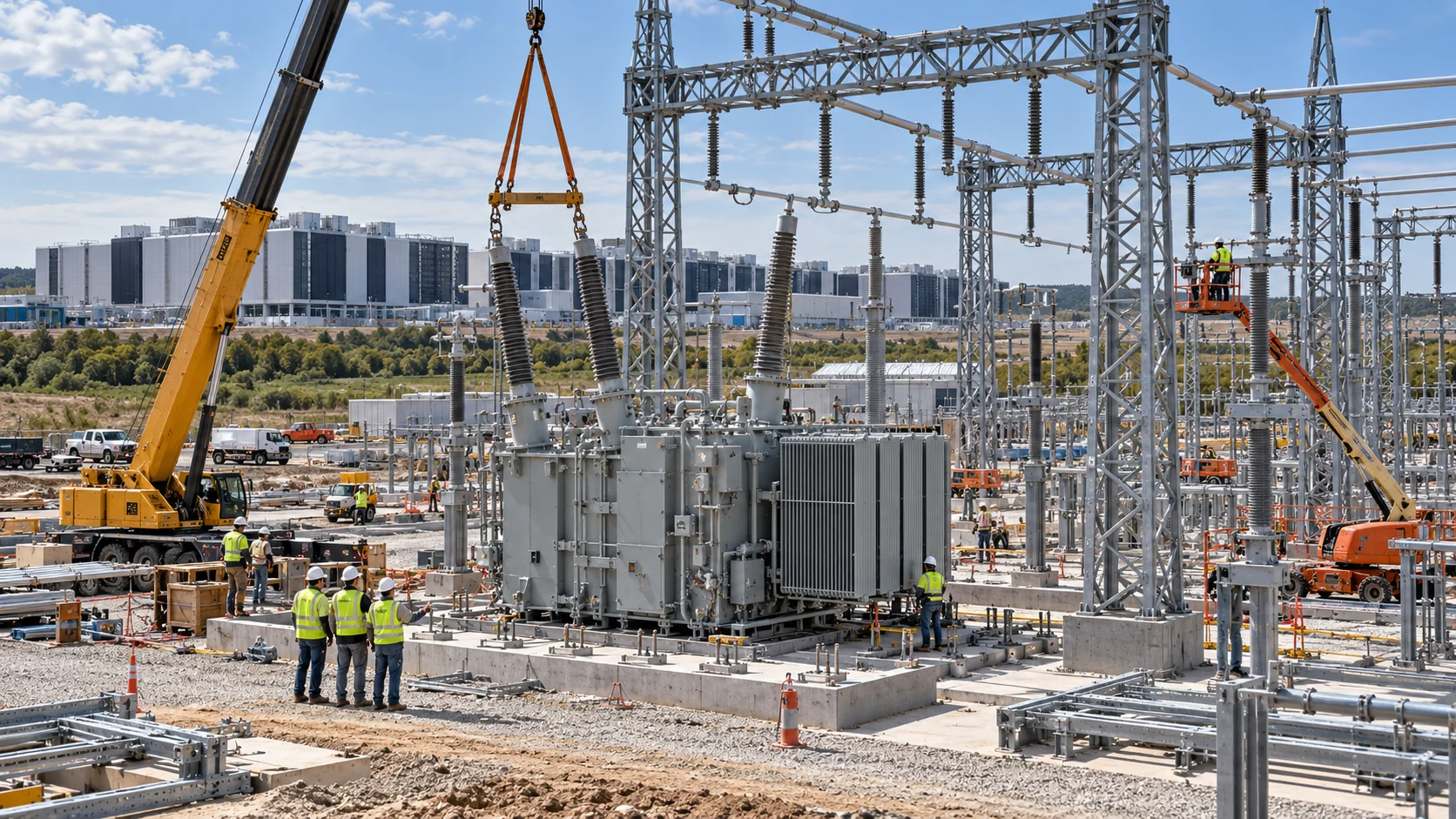

Could a microgrid help a data center connect sooner? In some cases, on-site generation can serve part of a campus while grid upgrades are completed, a concept sometimes called bridge power. It requires permits, fuel and careful design, and the long-term plan usually still includes a full utility connection.

What does “black start capable” mean for a microgrid? It means the microgrid can restart itself from a complete shutdown without power from the utility, typically using batteries or a generator with its own starting system.

Latest stories

View all

Power & Grid

A Maintenance Window Changes the Meaning of Redundancy

A facility’s normal arrangement is only one of its operating states. When equipment is removed from service for maintenance, the remaining paths may carry a different risk. A redundancy label needs to be read with that temporary configuration.

Published

on

Wires connected inside an electrical switch box

Photo: mostafa mahmoudi / Unsplash

A facility's normal arrangement is only one of its operating states. When equipment is removed from service for maintenance, the remaining paths may carry a different risk. A redundancy label needs to be read with that temporary configuration.

The operating distinction

Maintenance can remove a spare component, change a transfer path or increase the load on equipment that remains available. The operational question is which further interruption the system could tolerate in that state. That question may have a different answer from the one given for normal operation.

Advertisement

Temporary states deserve names that operators can recognize. If a system has several possible maintenance configurations, a generic instruction to use the backup can leave too much unstated. The arrangement being discussed should match the equipment actually removed from service.

A practical example

Imagine a hypothetical system with alternate power paths while both are available. During planned work on one path, the other becomes more important. A second task on a related component could create an exposure that neither maintenance activity would create alone.

Questions worth asking

The temporary configuration changes the relevant failure question. Describing the available paths during maintenance helps readers understand both why the work is necessary and which additional conditions the operating team must manage around it.

  • What protection remains while the selected equipment is unavailable?
  • Could another planned activity affect the same remaining support path?
  • What condition would postpone the work or require restoration of the normal arrangement?

What the evidence supports

This does not mean that maintenance should be avoided. Deferred work can increase other risks. It means that timing, dependencies and contingency arrangements belong in the planning discussion. Only qualified personnel following the site's procedures should operate or isolate electrical equipment.

The communication record should also identify when the temporary condition begins and how normal status is restored. Otherwise the next shift may inherit a narrower margin without realizing it. In a public explanation, this can remain high-level: the purpose is to distinguish resilience under normal conditions from resilience during planned work, not to publish sensitive switching instructions or suggest that every maintenance activity creates the same risk.

Advertisement

Describe resilience during the actual maintenance state, rather than borrowing the normal-state label without qualification.

Quick check

How much did you catch? Tap a question to see the answer.

1. Why read a redundancy label alongside maintenance plans?

Answer: Taking equipment out of service changes the risk on the paths that remain.

2. What question matters during maintenance?

Answer: Which further interruption the system could tolerate in that temporary state.

3. Why is “use the backup” too vague?

Answer: It doesn’t say which configuration matches the equipment actually removed from service.

Thinking in Operating States

A helpful habit is to describe a system as a set of named operating states rather than a single design. Each state has its own available paths and its own answer to the question of which further failure it could tolerate. In general terms, a facility might move through states such as these:

  • Normal. All designed paths and spare components are available.
  • Planned maintenance. A specific component or path is intentionally out of service for work.
  • Degraded after a fault. A component has failed unexpectedly and the system is running on the remaining paths.
  • Testing. The system is deliberately placed in a configuration to confirm that a function works.
  • Restoration. Work is complete and the system is returning to normal, but checks are not yet finished.

Describing which state applies, and what remains available in it, gives operators and readers a shared language. It also makes clear that the same facility can have different resilience at different times of the same week.

Planning a Maintenance Window Step by Step

The following outline describes how a planning discussion can be structured. It is not a switching procedure, which belongs to qualified personnel and site-specific methods.

  1. Name the affected equipment and resulting state. State clearly what will be out of service and what the remaining arrangement will be.
  2. Identify what remains protected. Describe which further faults the remaining paths could tolerate.
  3. Check for overlapping work. Review other planned activities, supplier visits and tests that could affect the same remaining path.
  4. Consider external conditions. Weather forecasts, utility notices and unusual load periods may favor a different timing.
  5. Set stop conditions. Agree in advance which developments would pause the work or trigger a return to the normal arrangement.
  6. Communicate the window. Inform affected teams and customers as appropriate, including start, expected end and restoration checks.
  7. Confirm restoration. Verify that normal status has returned and record it so the next shift knows.

Common mistakes

Two unrelated teams scheduling work on components that share a dependency is a classic problem, especially when change records are kept in separate systems. Another mistake is leaving a temporary state in place longer than planned without updating the shift record. A third is treating the restoration as complete as soon as equipment is energized, before checks confirm that the redundant path is genuinely available again.

What This Means for Customers and Readers

For a business hosted in a facility, maintenance notices are an opportunity to understand how resilience changes during planned work. A provider that explains the temporary state, the remaining protection and the stop conditions is communicating useful information. For readers following the industry, a redundancy label describes design intent; operating practice determines how well that intent holds up across the year.

Redundancy is a property of a particular moment, not a permanent label on the building.

Questions Readers Ask

Why not simply avoid maintenance to keep redundancy intact?

Deferred maintenance can increase the chance of unplanned failures. Planned work is usually the safer path when it is scheduled and coordinated carefully.

Can a facility remain fully redundant during maintenance?

Some designs are built to keep a spare path available while one path is under maintenance. Whether that applies depends on the specific design and the work involved.

Should customers be told about maintenance windows?

Many agreements include notification arrangements. The details vary by provider and contract.

What is a stop condition?

A pre-agreed event or reading that pauses the work or triggers restoration of the normal arrangement.
